To configure an ip address: ifconfig eth0 <ip address> netmask <mask> up

To confirm the ip address on the interface: ifconfig

To configure the gateway ip address: route add default gw <gateway ip address>

To confirm the default gateway ip: route

To enable DHCP for an interface: udchpc <interface>

ctrl+c or command+c on MAC to cancel a ping or traceroute command

If a username and password is requested to login into the linux PC host within the topology, use: gns3/gns3 or tc/tc

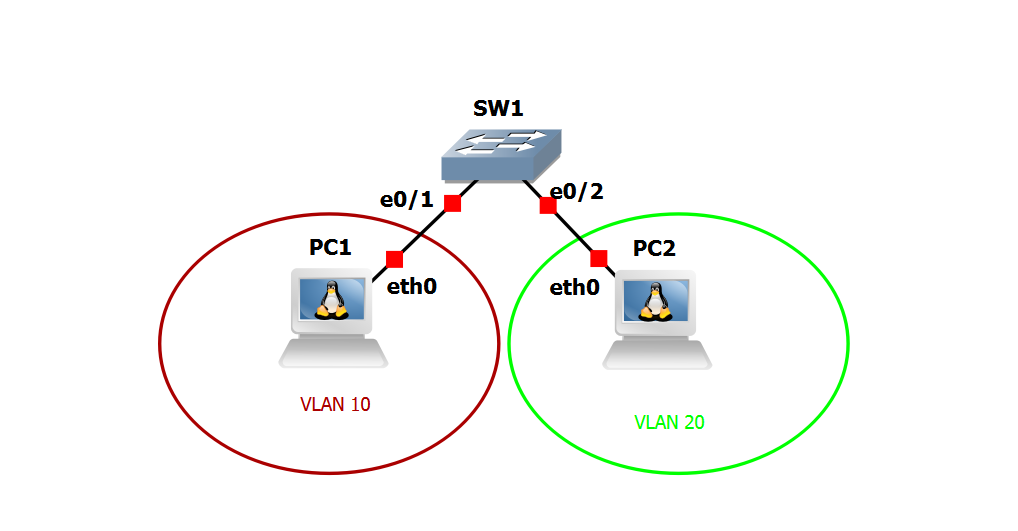

On SW1:

Create VLAN 10 and name the vlan DATA

Create VLAN 20 and name the vlan Management

- Verify the VLAN's were created

Configure the port going to PC1 as an access port and assign it to VLAN 10

- Verify the port is in VLAN 10 and is an access-port

Configure the port going to PC2 as an access port and assign it to VLAN 20

- Verify the port is in VLAN 20 and is an access-port

Create an SVI(Switch Virtual Interface) for VLAN10 and assign it IP address: 192.168.10.1/24

- Verify the interface is in the UP/UP state

Create an SVI for VLAN20 and assign it IP address: 192.168.20.1/24

- Verify the interface is in the UP/UP state

On PC1:

Configure PC1 with ip address 192.168.10.11/24 and a default gateway of 192.168.10.1

- Verify the interface has the correct IP address and is in the UP state

On PC2:

Configure PC2 with ip address 192.168.20.11/24 and a default gateway of 192.168.20.1

- Verify the interface has the correct IP address and is in the UP state

Test Connectivity

Test connectivity between PC1, PC2 and the SVI interfaces, both PC1 and PC2 should be able to ping each other and their gateways.
